TB260 DPF  COMPACT 6 TONNE EXCAVATOR

Takeuchi offer a powerful alternative in the 6-tonne weight class, theTB260 with DPF.
FULLY HYDRAULIC COMPACT 6 TONNE EXCAVATOR The new TB260 combines all the proven characteristics of Takeuchi excavators - smooth hydraulics powerful machine performance and good serviceability into a larger sized machine.

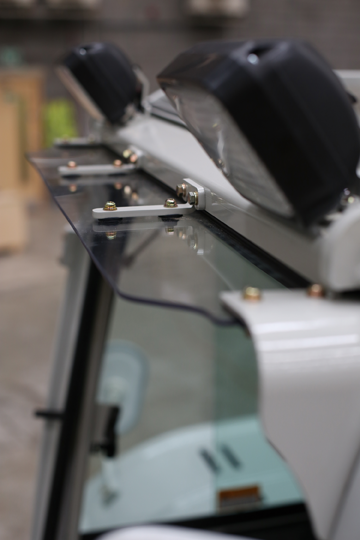

The new TB260 comes with all round LED lighting, factory fitted hitch pipework and powered Stage V ready for low emission zones.

• 5735 kg (cab)

• 3895 mm dig depth

• 6130mm ground reach

• 34.3  kW / 2400 rpm engine

• Two speed travel

• Heavy duty dozer

• Boom and arm holding valves

Compact Size - the new model weighs in at 5735kg with a massive 43.2kN bucket breakout force from a relatively compact overall size - with a machine track footprint of just 2000 x 2575mm; just 1300mm rear end radius makes all the difference on-site in limited areas as does a long ground reach of 6130mm.

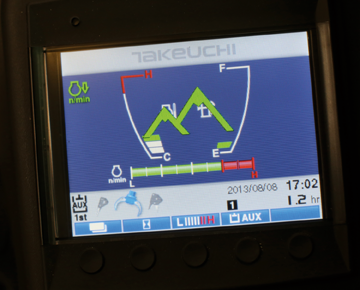

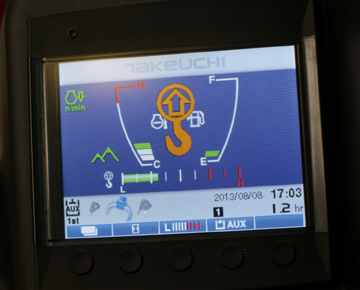

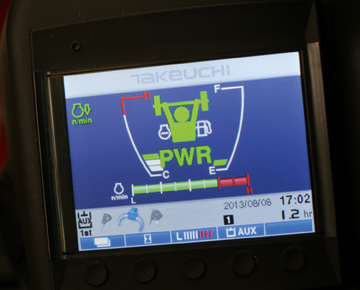

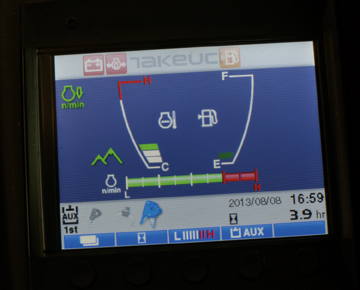

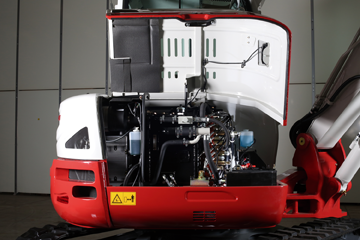

Powerful Breakout Force & Increased Reach - powered by a Yanmar 4TNV84T engine, turbocharged, now with DPF meeting Stage V emissions for the environment, fuel efficient - with automatic idle, dial throttle control with economy work-mode and electronic engine monitoring.The TB260 features 43.2 kN bucket breakout force and 25.5 kN digging arm force – high power for a 6 tonne excavator. With a massive ground reach of 6130mm and dig depth of 3895mm the new TB260DPF offers lots more on site versatility.

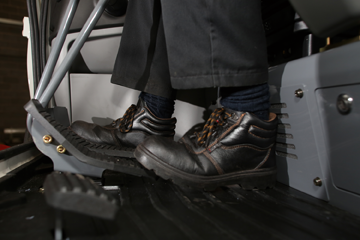

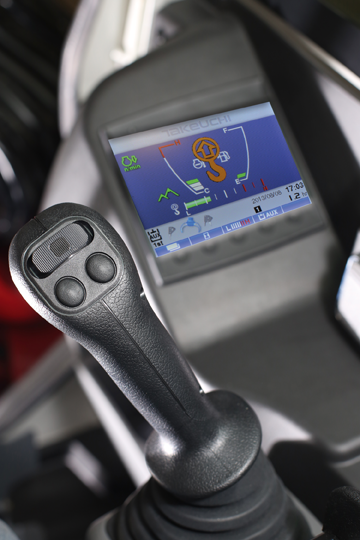

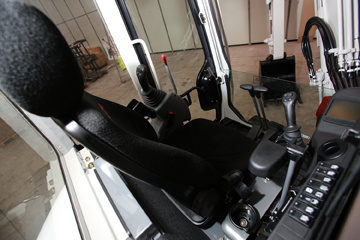

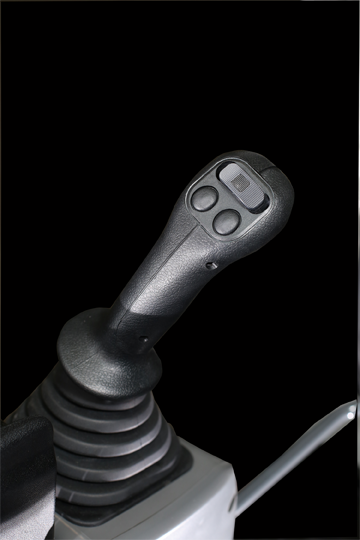

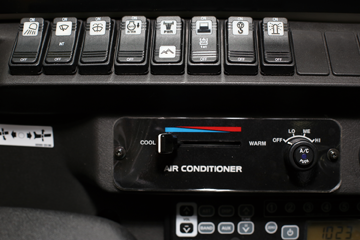

Maximum Operator Comfort - built with the the operator in mind, the roomy isolated cab minimizes the impact felt with a sliding suspended seat, 10-way adjustable headrest and ergonomically positioned hand and foot controls. Complete with a stylish large comfortable cab with plenty of foot room, high capacity automatic climate control, with heater and defrost options.With excellent all round visibility, retractable front window, large skylight with sun shade and removable lower window section provides for warmer working environments.Reduced Tail Swing the compact rear side features a shorter than average tail swing compared to conventional 6 tonne excavators combined with rounded corners and enhanced visibility, full 360° helps minimise potential machine damage in restricted areas

Now with New TSS - Takeuchi Security System as standard

• only programmed keys for start-up

• none programmed keys alert operators

• standard includes 1 red master and 3 black user keys (can programme up to 13 user keys)

NOW WITH ADDED TFM - TAKEUCHI FLEET MANAGEMENT

Takeuchi Fleet Management (TFM) is designed to help you better manage your fleet and lower your overall operating costs.
With TFM monitoring you can check the health of your equipment and prevent costly repairs by keeping track of alerts, hours and much more.

MINIMISE DOWNTIME - proactive monitoring increases machine health, reduces risk and keeps machines running.
REMOTE DIAGNOSTICS - reduce service trips by remotely capturing run hours and equipment data.
UTILISATION TRACKING - make decisions based on actual machine use.
PROACTIVE MAINTENANCE - schedule maintenance based on machine hours; saving time, parts and money.
